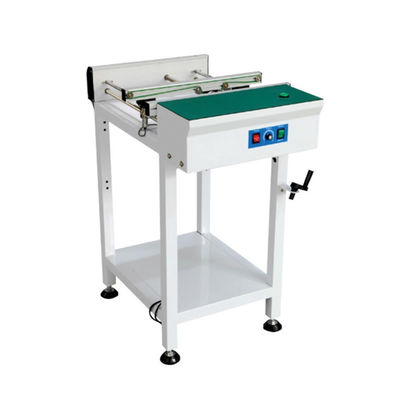

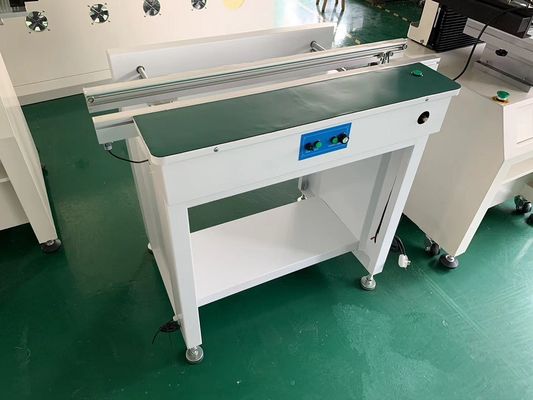

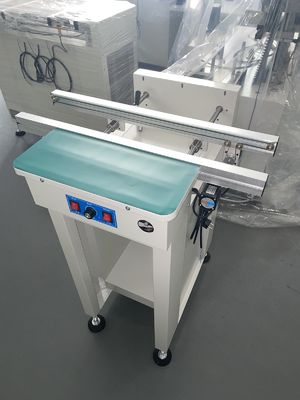

Automatic PCB Conveyor 0.6m for SMT Production Line Speed Adjustable 0.5/0.6m/1.0m/1.2m/1.5m
A PCB conveyor, also known as a PCB handling conveyor or PCB link conveyor, is an essential piece of equipment used in the electronics manufacturing industry. It is designed to transport printed circuit boards (PCBs) between multiple machines or workstations during the assembly process.
Parameters
| Model no. |
0.5/0.6m/ 1.0m/1.2m/ 1.5m |
| Machine dimension |
600*650*950/ 1000*650*950/ 1500*650*950 |
| Adjustable speed |
0-8000mm/min |
| Rail width range |
50mm---350mm |
| PCB transfer direction |
left to right / right to left |
| The height of the belt surface from the ground |
900mm±50mm |
| With lamp |
can add or not |
Using a PCB conveyor is relatively simple and involves the following steps:
1. Installation: The conveyor system needs to be properly installed in the manufacturing line, ensuring that it is securely fixed and aligned with other machines or workstations.
2. PCB Loading: PCBs are carefully placed on the conveyor, either manually or using an automatic loading mechanism. It is crucial to ensure that the PCBs are neatly positioned and aligned with the transport direction to avoid any jams or misalignments.
3. Speed Adjustment: Depending on the specific manufacturing process and the desired speed of operation, the conveyor's speed can be adjusted using the control panel or interface provided. It is important to set the speed correctly to maintain the required production rate while preventing any damage to the PCBs.
4. PCB Transfer: The conveyor moves the PCBs along the assembly line, ensuring a smooth transfer between machines or workstations. The rollers or belts gently facilitate the movement, preventing any slippage or unnecessary stress on the PCBs.
5. Unloading: Once the PCBs reach the desired destination, they are either manually unloaded or transferred to the next process through an automated system. Care should be taken during unloading to avoid any mishandling or damage to the PCBs.
6. Maintenance: Regular maintenance of the PCB conveyor is crucial to ensure its optimal performance and longevity. This includes cleaning the rollers or belts, checking for any signs of wear or damage, and lubricating the moving parts as recommended by the manufacturer.
In conclusion, a PCB conveyor is an indispensable tool for efficient and reliable transportation of PCBs during the assembly process. Its ease of use, time-saving capabilities, and ability to minimize damages make it an essential component in modern electronics manufacturing.
Charmhigh, famous brand in China, specializing in SMT industry for over 13 years, providing strong support.
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
