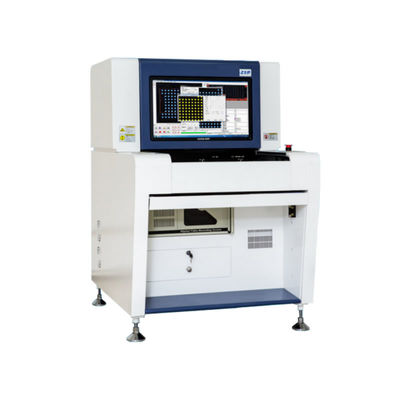

Flexible AOI Z5P Off-line AOI (high-end) SMT Automatic Optical Inspection Machine for PCB assembly line PCBA manufacturing
Multi-functional intelligent AOI, PCB size 25*25mm - 480*330mm, support 0201, 500 megapixels color camera
Description:
Z5P Off-line Automated Optical Inspection Machine has multi-program, multi-board test and automatic switching between front and back testprograms, smart camera barcode recognition system, combination ofremote programming and height control functions.
Z5P features:
1. Can be effectively used in after printing, before reflow,after reflow, wave soldering, and other related non-standard testing.
2. intelligent program control, can call programs automatically by the camera identify the barcode or label on the PCB.
3. Can communicate with other station equipment through the communication module, and seamless docking with MES.
4. Software testing algorithm can be flexibly and freely combined to improve the control accuracy.
5. Support large data server mode, can central centralized control by SPc software, one operator control multiple devices.
6. inteligent data alarm function, according to the user's production management needs to controlthe data, special alert information needs tobe recognized by administrator, to ensure strict control the product quality.
Z5P advantages:
1.Multiple algorithms and technologies are combined and applied together.
2.Simultaneous inspection for multi-boards and inspection shift of 2 sides of board (components top and bottom) improves the inspection efficiency.
3.Smart camera barcodes identify system.(Can identify 1D&2D barcode).
4.Multiple machine monitoring system, can know well of all the conditions of production.
5.Remote programming and debugging make the software is easier and convent.
| CATEGORY |
ITEM |
SPECIFICATION |
|
Recognition
System
|
Inspection |
Using multiple algorithms synthetically such as WDM,Color lmage contrast technology, Color vector analysis, similarity, two-
value handling technology OCR Contour analysis, Solder ball inspection and Wave DlP analysis technology and so on. |
| Camera |
5MP Color camera: 20um (15um,10um for option) |
| Lamp-house |
3 Rings RGB LED lamp-house, with special coaxialoptical for option. |
| lmage Processing Speed |
0201 Chip |
≤10ms |
| Per-image Time |
≤170ms |
| Inspection items |
Paste Printig Defects |
Misaligned, overflow, insufficient, pasting open, stain |
| Compones Defects |
Missing, misaligned, skewed, tombstone, billboard, overturn, reversed polarity, wrong, damaged |
| SolderDefects |
Overflow, insufficient, short solder, stain,false solder |
| Wave SolderingInspect |
Overflow, insufficient, short, Excess Solder, solder void |
| Anti Static Measures |
Anti static electric outlet, antistatic wreath |
|
Mechanism
System
|
PCB Size |
|
25x25mm~480x330mm,can make bigger size according to cients' demands |
| PCB Thickness |
|
±2mm |
| PCB Warp Tolerance |
|
0.5mm - 5.0mm |
| Component Clearance |
|
TOP<28/option:55mm; BOT<75mm |
| Minimum Space Parts |
|
20um:0201Chip,0.4Pitch IC,15um:01005Chip, 0.3Pitch IC |
| X Y platform |
Driber |
AC servo system |
| Orientation |
<10um |
| Moving Speed |
700 mm/s |
| Soft System |
Operation System |
Microsoft Windows 10 |
| Controlling&Recognizing |
Characteristics |
Automatic call the program & identify the top or bottom side of the PCB,;Support no PCB programming;lntelligencommunication, docking with MES;lntelligent data alert functionrSupport the central centralized database model |
| Operation |
Graphical programming, easy to operate, Multiple algorithms can be free combination, Support offline prog ramming 8debugging:Automatically generate SPC reports |
| Mark |
Mark Numbers |
3marks can be chosen |
| Recognising Speed |
0.5s/pcs |
| Others |
Machine Dimensions (LxWxH) |
868x1055x1365mm |
| WEIGHT |
~310kg |
| Power Supply |
AC220V:10%, single phase 50/60HZ, power consumption 600W |
| Working Environment |
Temperature10-40c humidity 30-80% RH |

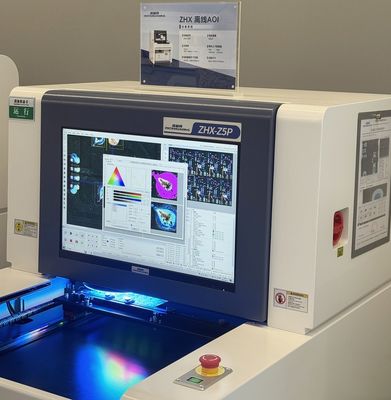

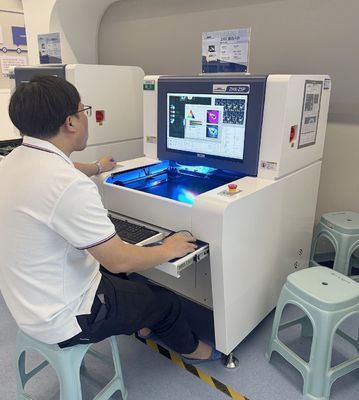

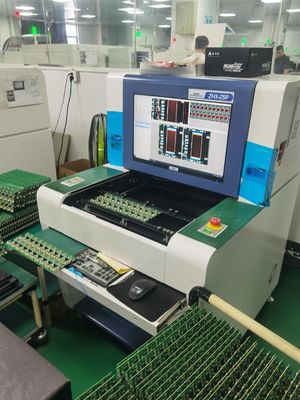

100% real pictures
The original color extraction and analysis technology
Through the special micro color extraction of the shot image, in accordance with the standard template set special micro color surface specific gravity ratio, image analysis and processing, so as to more accurately extract the need to detect the content, detection accuracy is high. The regional application of multi-mark and multi-board can better adapt to the testing requirements of products and has higher applicability.
Intelligent tin bead detection algorithm
Through the analysis and operation of the color, brightness and the shape and color characteristics of the tin beads on the substrate, the tin beads on the substrate can be detected and analyzed. The tin beads on the individual components can be detected, and the tin beads on the whole plate can also be detected by the overall picture frame of the substrate.
Single box multiple algorithms
The comprehensive application of various algorithms greatly improves the straight-through rate of product detection and reduces the misjudgment rate, and the testing effect is better. A single detection box is used to realize the fusion of multiple detection algorithms, and the product quality is analyzed and detected by analyzing the principle from different angles.
PCB assembly line recommend:
